RackEye LED Flash Sequences & Meaning

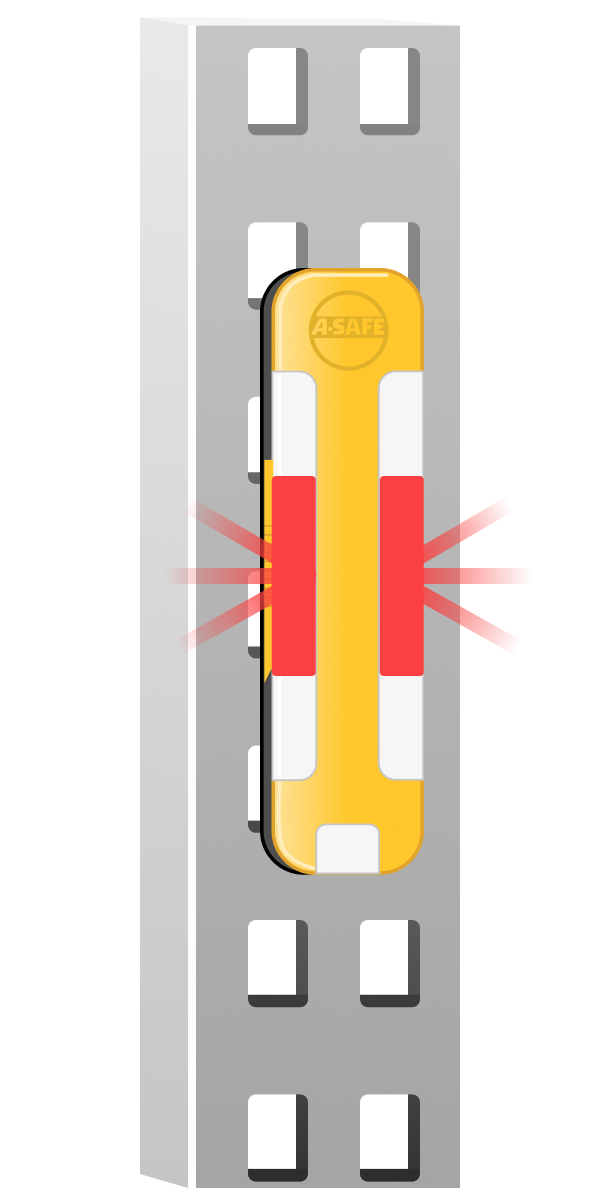

Red Flash

A red flashing sequence from the RackEye represents that a significant impact has occurred and alerts you to potential damage to the racking

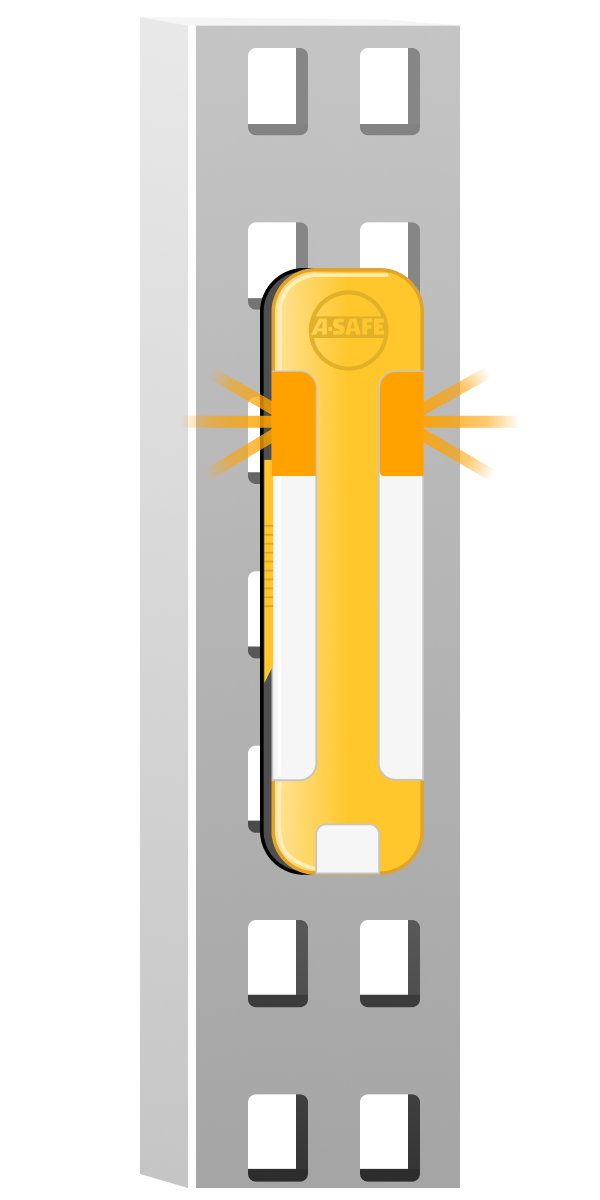

Amber Flash

An amber flashing sequence from the RackEye represents that a lower magnitude of impact has occurred, that may still have caused damage to the racking

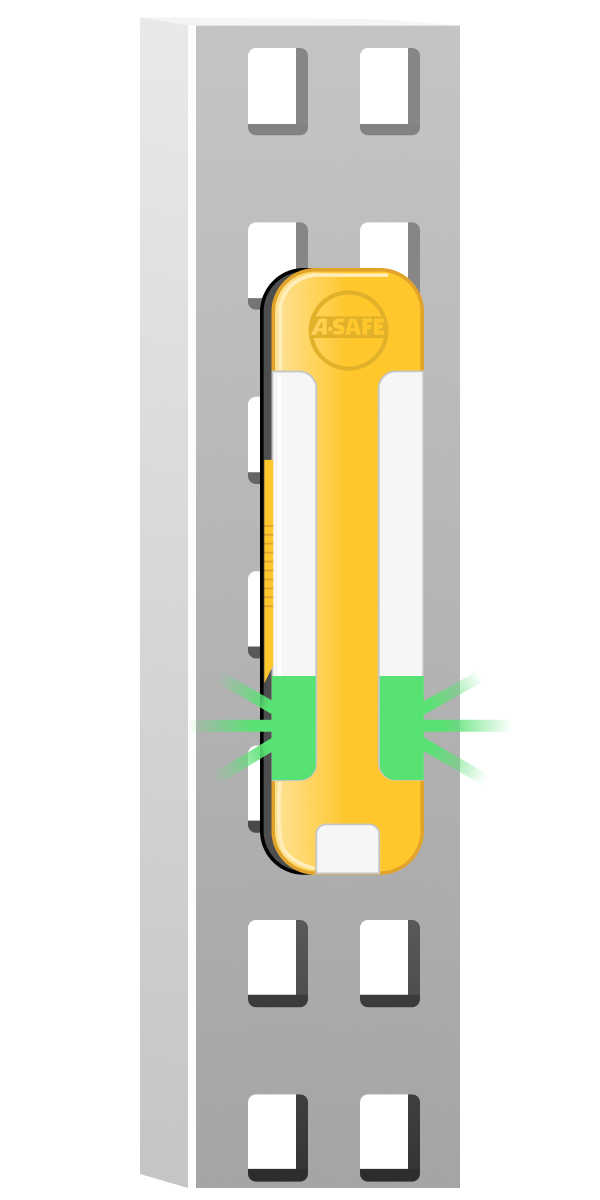

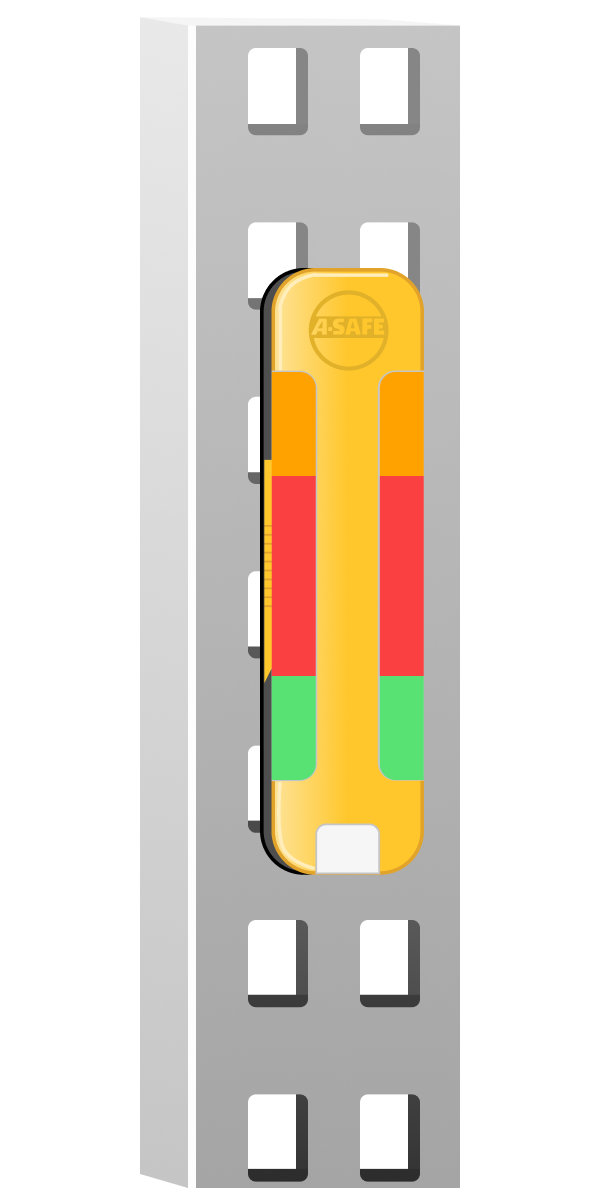

Boot up Flash

1 Green Flash, followed by another Green Flash and then preceded by Green, Amber and Red Flash simultaneously. This is the boot up initialisation lighting sequence, once the batteries have been added to the RackEye device.

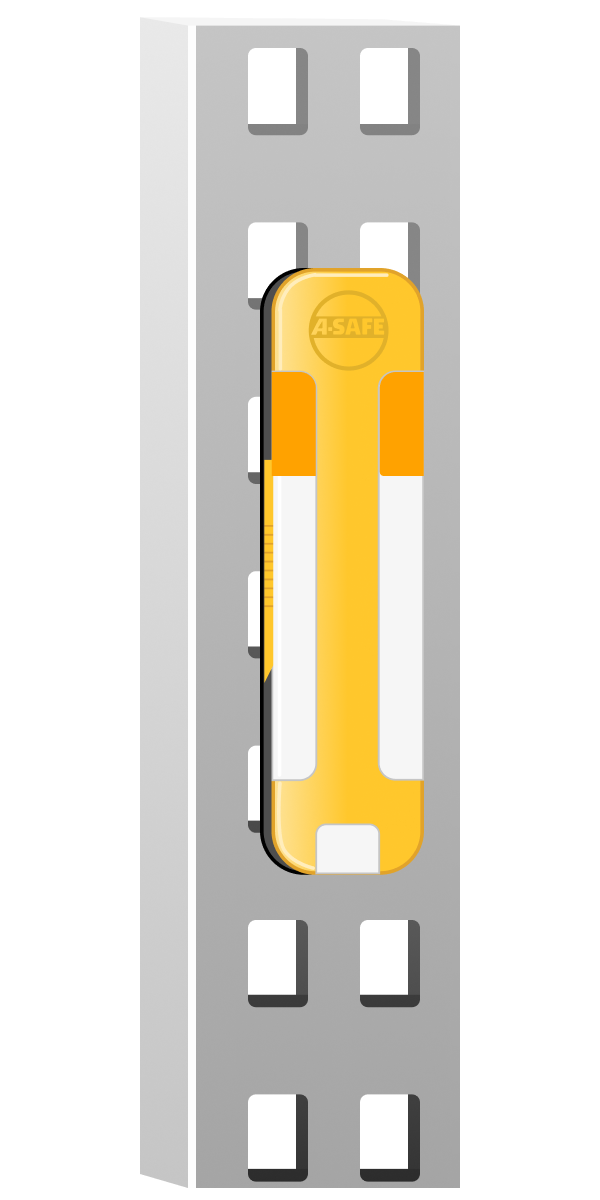

Solid Amber

A solid amber light indicates that the RackEye is in the process of being registered to a Gateway.

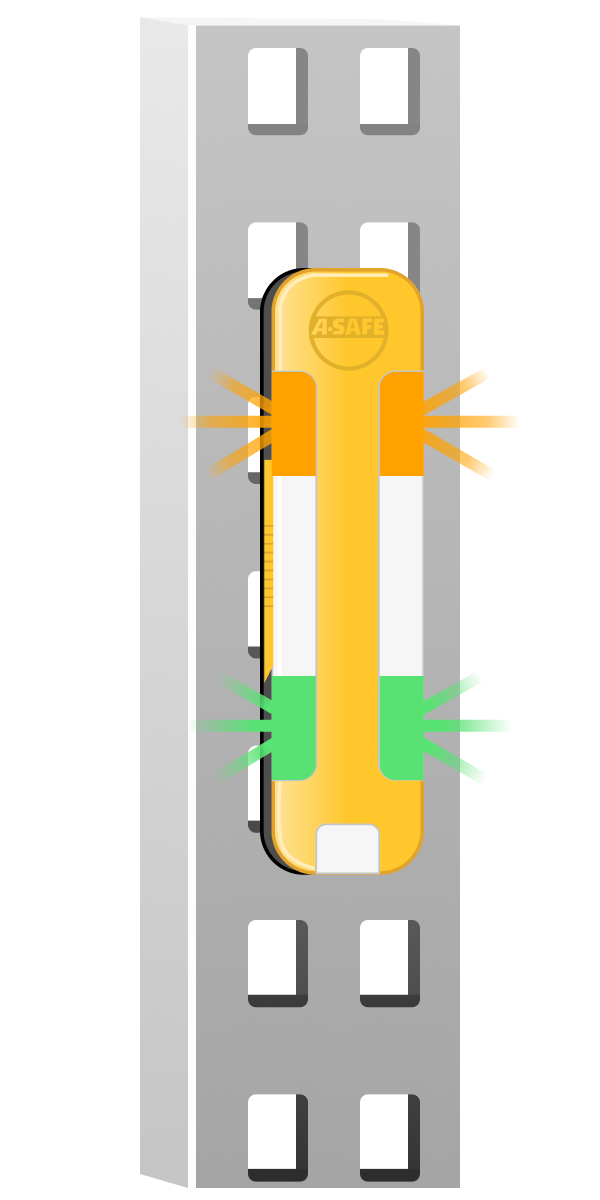

Green and Amber Simultaneous Flashing

This indicates that the RackEye device has been de-registered from its current gateway host.

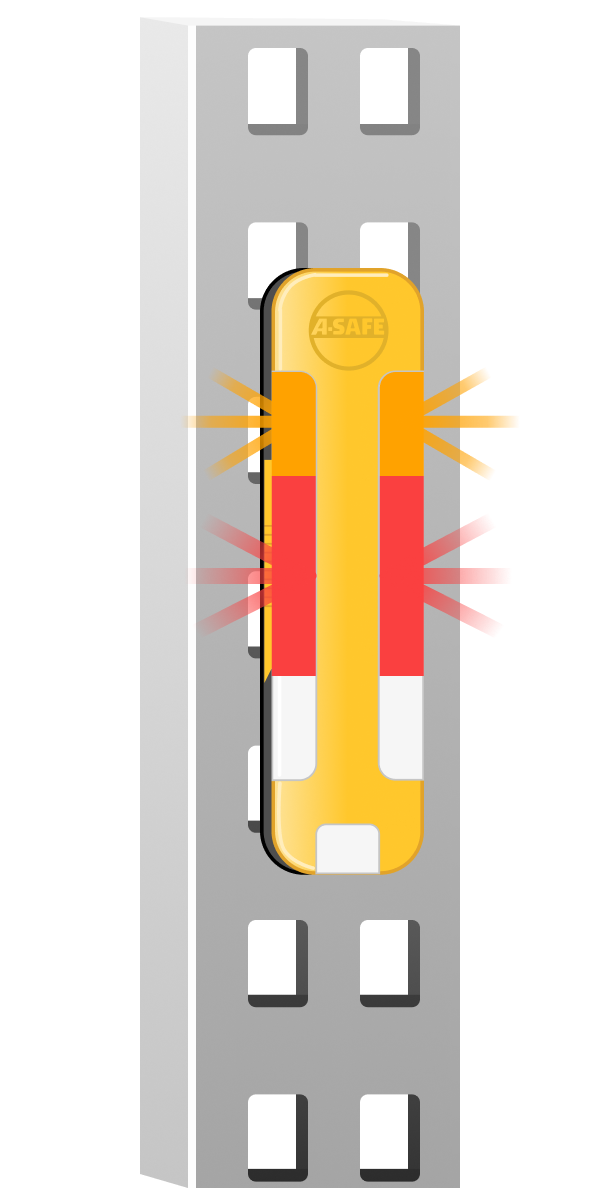

Red and Amber Simultaneous Flashing (Timeout Flash)

Red and Amber flashing together indicates that an impact event occurred that the device was not able to send to the gateway for analysis.  This may be due to the gateway being offline, or due to a large number of messages being sent to the gateway.
